BETAFPV C03 FPV Micro Camera with Canopy [BF-01060007]

L05E-11
3,250円(税込)
在庫:在庫あり


商品の説明

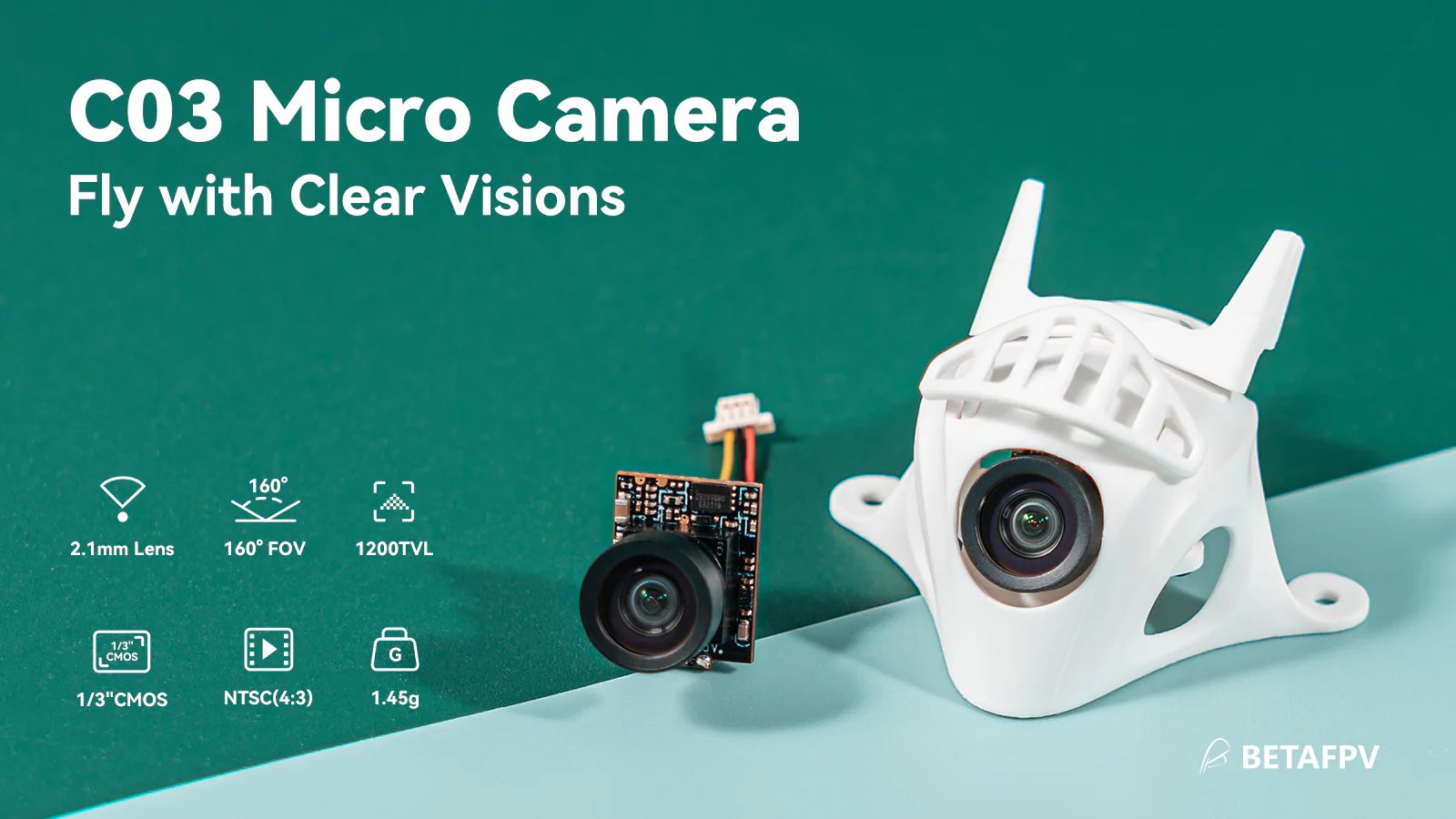

C03 FPV Micro Camera, specially designed for indoor micro FPV quadcopters, comes with a 1.52g lightweight, 1/3'' CMOS sensor, 2.1mm lens for 160° FOV, and excellent latency. Recommend using C03 FPV Micro Camera with BETAFPV Micro Canopy.



Bullet Points
Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use.
Miniature, and lightweight design, weighing only 1.52g. Completely match with M03 5.8G VTX on micro whoop drone.
1200TVL resolution and 1/3" CMOS sensor ensure a high-quality and clear image
Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition
2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes.

Specification
Item: C03 FPV Micro Camera
Image Sensor: 1/3" CMOS Sensor
Horizontal: 1200TVL with Global WDR
Signal System: NTSC (4:3)
Lens : 2.1mm(M7) FOV 160°
S/N Ratio: >50db
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power: DC 3-5.5V
Current: 100mA@5V / 120mA@3.3V
Housing Material: ABS
Dimension: 11*14.1*13.5mm

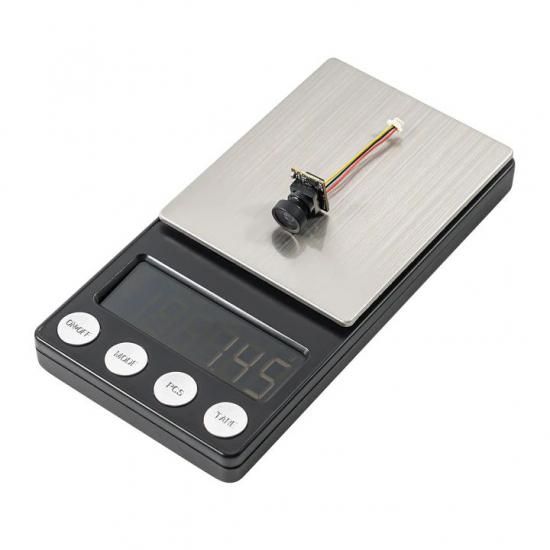

Net weight: 1.52g



Plug-N-Play Connector
C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers.



Recommend Parts
Canopy: BETAFPV Canopy for Micro Camera 2022
VTX: BETAFPV M03 5.8G VTX
FC: BETAFPV F4 1S 5A AIO FC, NBD BeeBrain flight controllers
Drones: Meteor65/75 drones, or other micro whoop drones in the market.

セット内容:
1 * C03 FPV Micro Camera
1 * BETAFPV Micro Canopy
1 * 20° Lens Camera Mount for C02
1 * 20° Lens Camera Mount for C03
1 * 30° Lens Camera Mount for C03
3 * Decorative Parts
4 * M1.4*5 Screws (Sliver)
6 * M1.4*4 Screws (Black)
