商品の説明

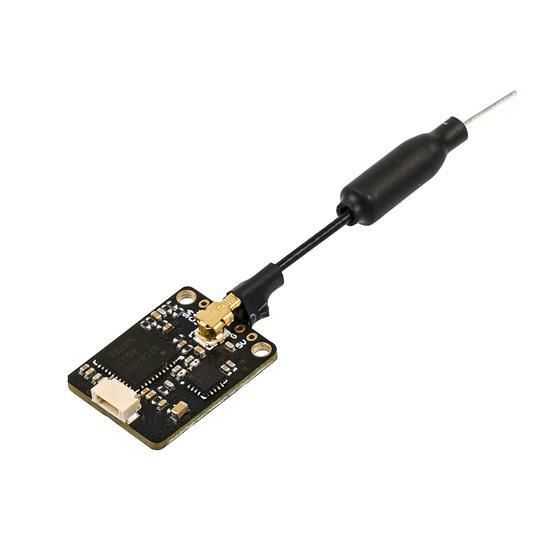

M03 はBETAFPV Meteorシリーズ純正VTX
BETAFPV M03 VTXは、65-85mmのフープドローン向けに設計された超軽量で高出力の5.8GHzアナログVTXで、より遠くまで飛行するために設計されています。このVTXと優れたラジオリンクのExpressLRS 2.4Gを組み合わせることで、パイロットはフープドローンをより長く飛ばし、さらに多くの可能性と楽しみを探求できます。
※基盤のバージョンは1.1です。
M03 VTXは、25-350mWの出力パワーを提供し、安定した映像と強力な送信を実現します。
重さはわずか1.1g、65-85mmフープドローンのような小型ドローンに適したサイズです。ネジ穴のパターンはBETAFPVのマイクロキャノピーに適合し、カメラコネクタJST-0.8はBETAFPV C02カメラに適しています。
IPXタイプのアンテナが付属しており、プラグアンドプレイで、追加のはんだ付け作業は必要ありません。
M03 VTXは65-85mmフープドローンに完璧に適しています。F4 1S 5A FC(ELRS 2.4G)やF4 1S 12A FC(ELRS 2.4G)のようなELRS 2.4G FCボードとの使用を強くお勧めします。
![](https://img15.shop-pro.jp/PA01085/133/etc/m03-25mw-350mw-5.8g-vtx1.jpg?cmsp_timestamp=20211116160821)
Specification
Item: M03 5.8G VTX
Output power: 25/100/200/350mW (adjustable)
Supply voltage range: 4.5-5.5V
Weight: 1.1g (antenna not included)
VTX internal size: 18X14mm
Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
Channel SEL: SmartAudio
Modulation type: FM
Frequency control: PLL
All harmonic: Max -50dBm
Frequency stability: ±100KHz (Typ.)
Frequency precision: ±200KHz (Typ.)
Channel carrier error: ±1.5dB
Antenna port: 50 Ω
Operating temperature: -10℃~+80℃
Camera connetor: JST-0.8, compatible with camera like BETAFPV C01, BETAFPV C02 and NewBeeDrone BeeEye.
Diagram
Below is the diagram of the M03 VTX. The camera connetor is JST-0.8 and it is compatible with camera like BETAFPV C01, BETAFPV C02 and NewBeeDrone BeeEye.
![](https://img15.shop-pro.jp/PA01085/133/etc/m03-25mw-350mw-5.8g-vtx2.jpg?cmsp_timestamp=20211116161008)
How to Connect with FC
Here is the diagram about how to connect the M03 VTX with F4 1S 5A FC (ELRS 2.4G) board.
![](https://img15.shop-pro.jp/PA01085/133/etc/m03-25mw-350mw-5.8g-vtx3.jpg?cmsp_timestamp=20211116161125)
Here is the diagram about how to connect the M03 VTX with F4 1S 12A FC (ELRS 2.4G) board.
![](https://img15.shop-pro.jp/PA01085/133/etc/m03-25mw-350mw-5.8g-vtx4.jpg?cmsp_timestamp=20211116161316)
Change Band & Channel & Power
M03 VTX could only use the Smart Audio port to change the band and channel. Enter the OSD menu by radio transmitter sticks ( Pitch Stick UP and Yaw Stick Left). Then FEATURES -> VTX SA to change the frequency point and power.
![](https://img15.shop-pro.jp/PA01085/133/etc/m03-25mw-350mw-5.8g-vtx5.jpg?cmsp_timestamp=20211116161416)
Switchable power includes 25mW, 100mW, 200mW and 350mW. Except the method via OSD menu as show above, the output power could be changed via the power button.
![](https://img15.shop-pro.jp/PA01085/133/etc/m03-25mw-350mw-5.8g-vtx6.jpg?cmsp_timestamp=20211116161528)
Below is the frequency table of M03 VTX.
セット内容:
1 x BETAFPV M03 5.8G VTX (antenna assembled) 【V1.1】
5 x30AWG silicone wire (30mm)
VTX系統図
