Meteor75 Pro Brushless Whoop Quadcopter (1S HD Digital VTX) Walksnail Ver. ELRS2.4G[BF-0101027_1]

BETAFPV Meteor75 Pro Brushless Whoop Quadcopter (1S HD Digital VTX) Walksnail Ver. ELRS2.4G

新しい壮大な 1S HD デジタル フープ クワッドコプターは、印象的なビジュアルとパワフルなパフォーマンスを誇っています。 Meteor75 からアップグレードされたフレームと 45mm プロップにより、最大の 1S フープ クワッドコプターとなり、推力と揚力が向上し、軽量の 1.1g キャノピーが装備され、Walksnail Digital VTX システムの持ち運びが容易になり、没入型の飛行体験とインパクトのある画像がパイロットにもたらされます。 F4 1S 5A FC、1102 22000KV モーター、および新しい大容量 BT2.0 550mAh 1S バッテリーと組み合わせることで、Meteor75 Pro HD クアッドコプターはより高速で応答性が高くなり、飛行時間が向上します。FPV レースや屋内外でのアクロバット飛行に最適です。

Tons of ExpressLRS items are available now!

betafpv meteor75 pro hd

Item: Meteor75 Pro Brushless Whoop Quadcopter (1S HD Digital VTX)
Flight Time: 5:30 (Walksnail)
Camera Adjustable Angle: 0-40°
Motors: 1102 22000KV Motor
Battery: BT2.0 550mAh 1S Battery
Frame: Meteor75 Pro Brushless Whoop Frame
Propellers: Gemfan 45mm 3-Blade Propellers
Canopy: BETAFPV Micro Canopy Lite
Weight Without Battery: 35.77g (Walksnail)
Receiver: Serial ELRS 2.4G/SPI Frsky/TBS
FC&ESC: F4 1S 5A FC (Serial ELRS 2.4G)
VTX Power Output: 350mW (Walksnail)
VTX: Walksnail Avatar HD Mini 1S Lite Kit
Camera: Wanlksnail Avatar Lite Camera

betafpv meteor75 pro hd

Meteor75 Pro HD VS Meteor75 HD
Upgraded from Meteor75 HD, the Meteor75 Pro HD is the largest 1S HD digital whoop drone with 45mm propellers, which is able to generate more thrust and lift. It comes with a 1.1g Micro Canopy Lite, a 550mAh larger battery, and higher KV motors. The total weight of Meteor75 Pro HD is lighter than Meteor75 HD, making it more agile and easier to handle.

betafpv meteor75 pro hd

HD Digital VTX System
The Walksnail Avatar HD Mini 1S Lite uses H.265 high-efficiency video coding, an industry-leading technology, providing 1080P/60FPS image recording with 22ms ultra-low latency. It is specially designed for 3.1-5V power input and 7.8g lightweight, compatible with 1S whoop drone. Built-in 8 GB storage, this VTX has the capability of recording HD video without interference from capacity and exporting video by USB cable. Besides, with Canvas Mode, Betaflight full OSD display is supported and can be adjusted easily by remote control.

Note: Recommend Walksnail Avatar Goggles and Walksnail Avatar VRX for Meteor75 Pro Walksnail HD version.

betafpv meteor75 pro hd

Powerful 1S Drone Combo
Even carrying the HD digital VTX system, Meteor75 Pro HD still performs well in power and speed thanks to its upgraded frame that is suitable for 45mm props, allowing it to be the largest 1S power whoop drone with greater thrust and lift. Fit out with 1102 22000KV motors and BT2.0 550mAh 1S battery, this 1S drone combo has an excellent thrust-to-weight ratio performance and provides an immersive flight experience to pilots.

betafpv meteor75 pro hd

Flight Controller
The latest F4 1S 5A flight controller is applied to all BNF versions of Meteor75 Pro HD. It features Serial ELRS 2.4G instead of SPI ELRS 2.4G for ELRS version compared to the previous version. The Frsky version reserves two UART ports for the available external receiver so it can be used as PNP. The ESC on the new board is powered by BB51 hardware in place of BB21. Last but not least, we update the gyro to BOSH BMI270 for better performance and stability since the new F4 1S 5A FC.

Note: For Serial ELRS 2.4G, the Betaflight firmware 4.3.0 and up start to support BMI270 gyro. For SPI Frsky, DO NOT flash the other firmware, otherwise, the RX will be lost in control at a very close range. Please flash betaflight_4.2.11_BETAFPVF411RX firmware built by BETAFPV for SPI Frsky.

Micro Canopy Lite
Micro Canopy Lite is specially designed to be compatible with HD digital VTX and has an adjustable camera lens of 0-40°. By using the new Micro Canopy Lite, the weight of the drone is reduced, which in turn can improve flight performance and increase flight time. The open design helps to dissipate heat more effectively, reducing the risk of damage to the VTX or other electronic components inside the drone.

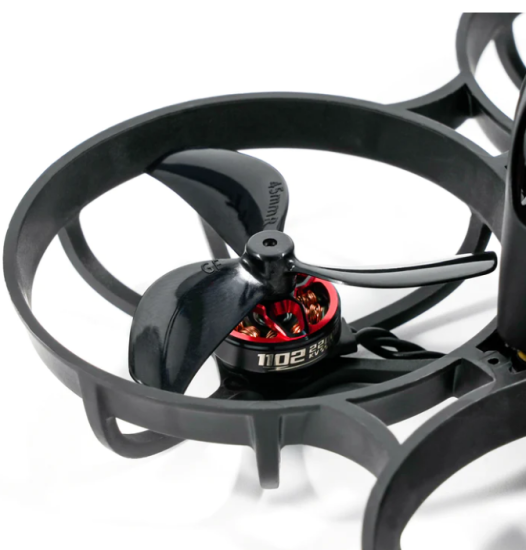

Meteor75 Pro Frame
Meteor75 Pro frame is the largest 1S whoop frame with 45mm propellers currently and comes with more features. The frame features a roomier battery slot for more battery choices such as BT2.0 550mAh battery. The motor holder is using a triangle bilateral stretch structure, giving pilots a more durable and smoother flight experience. In addition, the Meteor75 Pro frame offers seven colors for options, which pilots should purchase separately.

betafpv meteor75 pro hd

Endurance Boosting Battery
With the new BT2.0 550mAh 1S battery, Meteor75 Pro HD ensures more flight time up to 5:30 (Walksnail) so that pilots can less worry about the battery. What's more, it has a discharge of 40C (continuous) and 80C (burst), bringing a robust flight experience to pilots.

Meteor HD Series
BETAFPV has been optimizing and upgrading the Meteor series for better performance. The Meteor HD Series whoop drones including Meteor75 1S HD, and Meteor85 2S HD with Walksnail or HDZero HD digital VTX system aim to provide pilots with an immersive flight experience for FPV racing and high-definition images.

betafpv meteor75 pro hd

Recommended Parts
Radio Transmitter: LiteRadio 3 Pro, LiteRadio 3, LiteRadio 2 SE
Battery: BT2.0 550mAh Battery, BT2.0 450mAh Battery
Props: Gemfan 45mm 2-Blade&3-Blade Propellers (1.5mm Shaft 4PCS)
Colorful Frame: Meteor75 Pro Brushless Whoop Frame
Colorful Canopy: Micro Canopy Lite
Sticker: BETAFPV Waterslide Decals
Charger: 6 Ports 1S Battery Charger & Adapter
Screws: Meteor Series Motor Fixing Screws Pack (40PCS)
BT2.0 Series Accessories

Download the FC firmware and CLI dump file for Walksnail versions.
Pilots can read and export the recording videos from Walksnail VTX by a 4-pin connector. Below is the diagram picture. For more information, please refer to the manual for it.

Click to download the manual for Walksnail Avatar HD Mini 1S Lite Kit.

1 * Meteor75 Pro Brushless Whoop Quadcopter (Walksnail Version)
2 * BT2.0 550mAh 1S Battery
1 * Type-C USB Cable
1 * BT2.0 Battery Charger and Voltage Tester
4 * 45mm 3-Blade Props (1.5mm Shaft)
1 * Screwdriver
1 * VTX USB Cable (Walksnail Version)
1 * Pack of Screws

betafpv meteor75 pro hd
